About the Automatic Labeller LAB8050
The LAB8050 automated bottle labeler is the best option to label your bottles, jars other cylidrical products automatically.
You have to adjust the system to your product and load these manually to the conveyor belt of the system.
Everything else is done by the sytem. The bottle labeler LAB8050 labels your product accurate and fast.
The unit is easy to use with the touch panel at the front of the system.
Furthermore you can process your different products by quick and fast product changes.
This model was created especially for a production with space limitations.
It can be used in production areas with limited space as well as in every other production area that need to be efficient.
The precise labeling position as well as the good quality and stability are the main targets of the development of this unit.

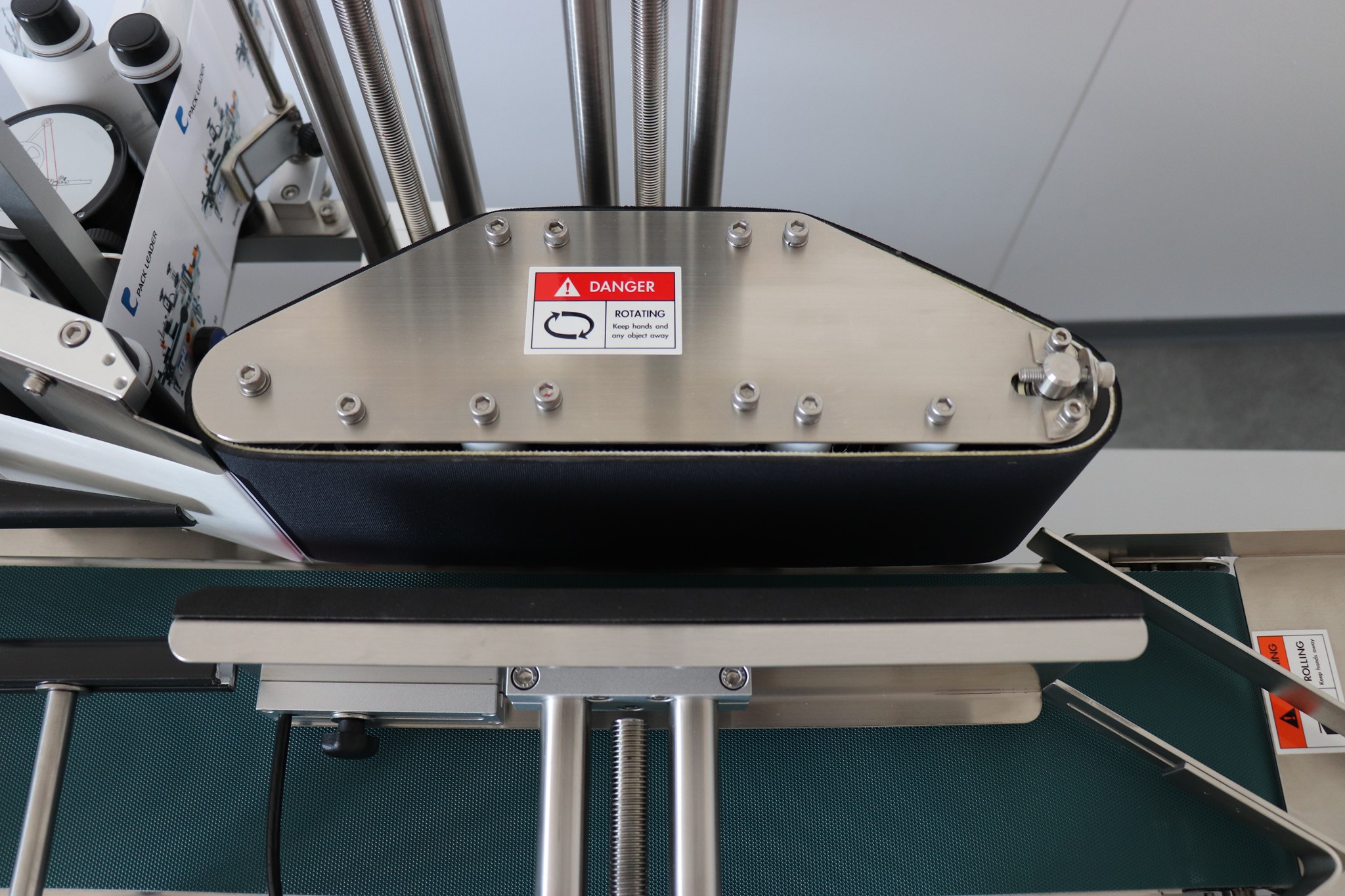

The unit is designed for a precise wraparound solution with exact label positioning features.
As the bottle labeler LAB8050 was build as a stand-alone unit there is no need of any other components like PCs or compressors.
You just need a power socket to connect the unit with power and you are ready to go.
You can control the bottle labeler with the user-friendly operating system and due the microprocessor you can control speed up operation procedures and boost up your production efficiency without any delay.
If you want you can add different printer function to this unit as well. You can print LOT numbers, experation dates or any other number.
This automatic labeller is the right choice if you are looking for a compact machine with a high efficiency that will do the job that it should do.

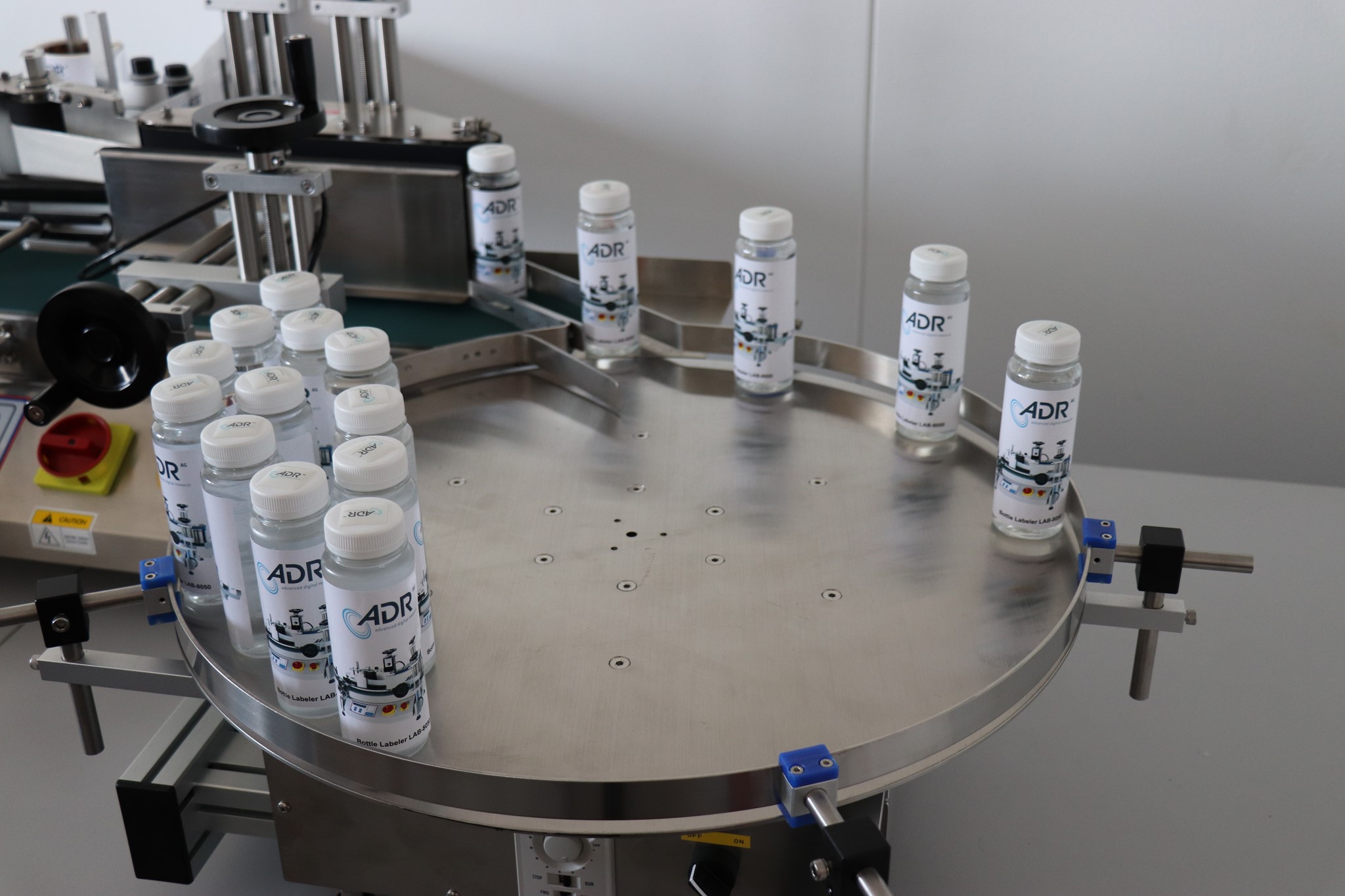

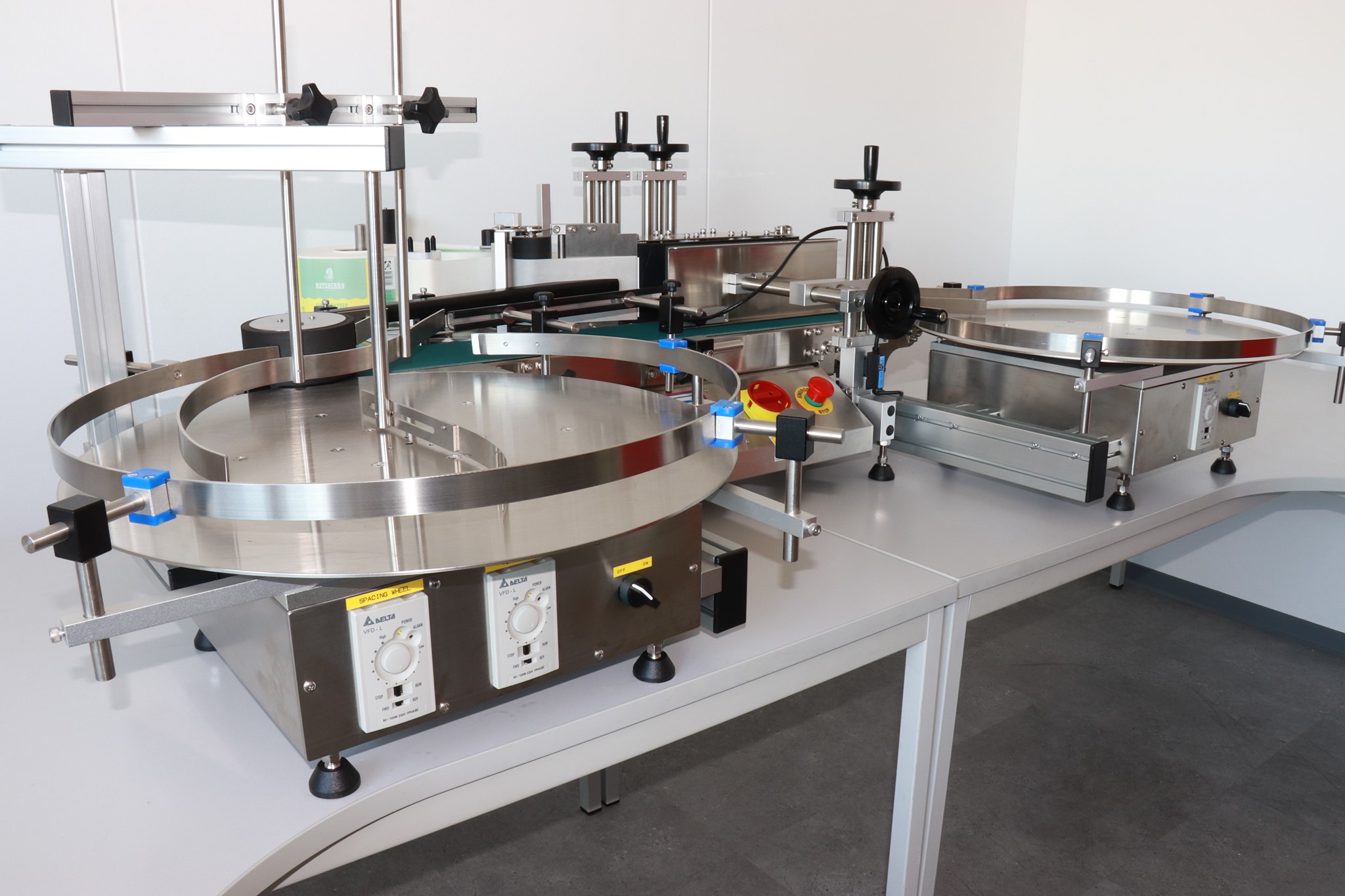

Optionally the LAB8050 is available with an infeed and outfeed table. This makes your production even easier !
- Belt Type Conveyor
The bottle labeler LAB8050 is using an industrial high quality belt which is durable and dirt repellant.
It is created to have a long lifetime so there in normally no need of changing the belt.
However, it is created to be changeable if the need of changing really arises.
- Precise Sensors

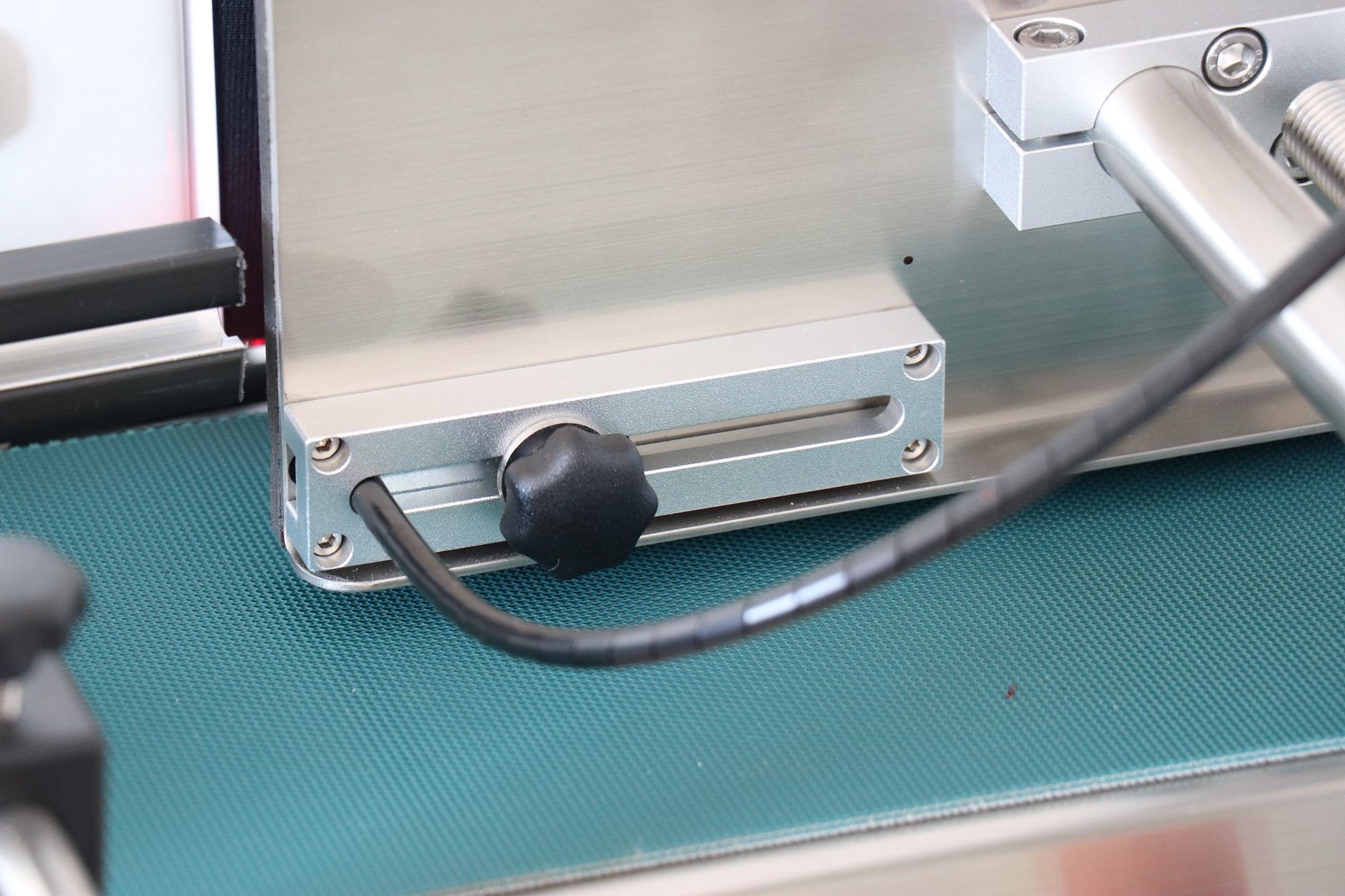

It is very important to use high quality fiber optic sensors. Only this way we can guarantee to have the best labeling result without interference.
- Precise Labeling controlling
As we are using micro stepping motors controlled by micro processor we can reach this efficiency with ultimate accuracy.
- Quality & Beauty
We are strictly following GMP standards so that the LAB8050 is made of 304 stainless steel and anodized aluminum. The sources of the material are from controlled suppliers so that we make sure they are coming from safe sources that respect the environment.
- Simple Mechanism Adjustment

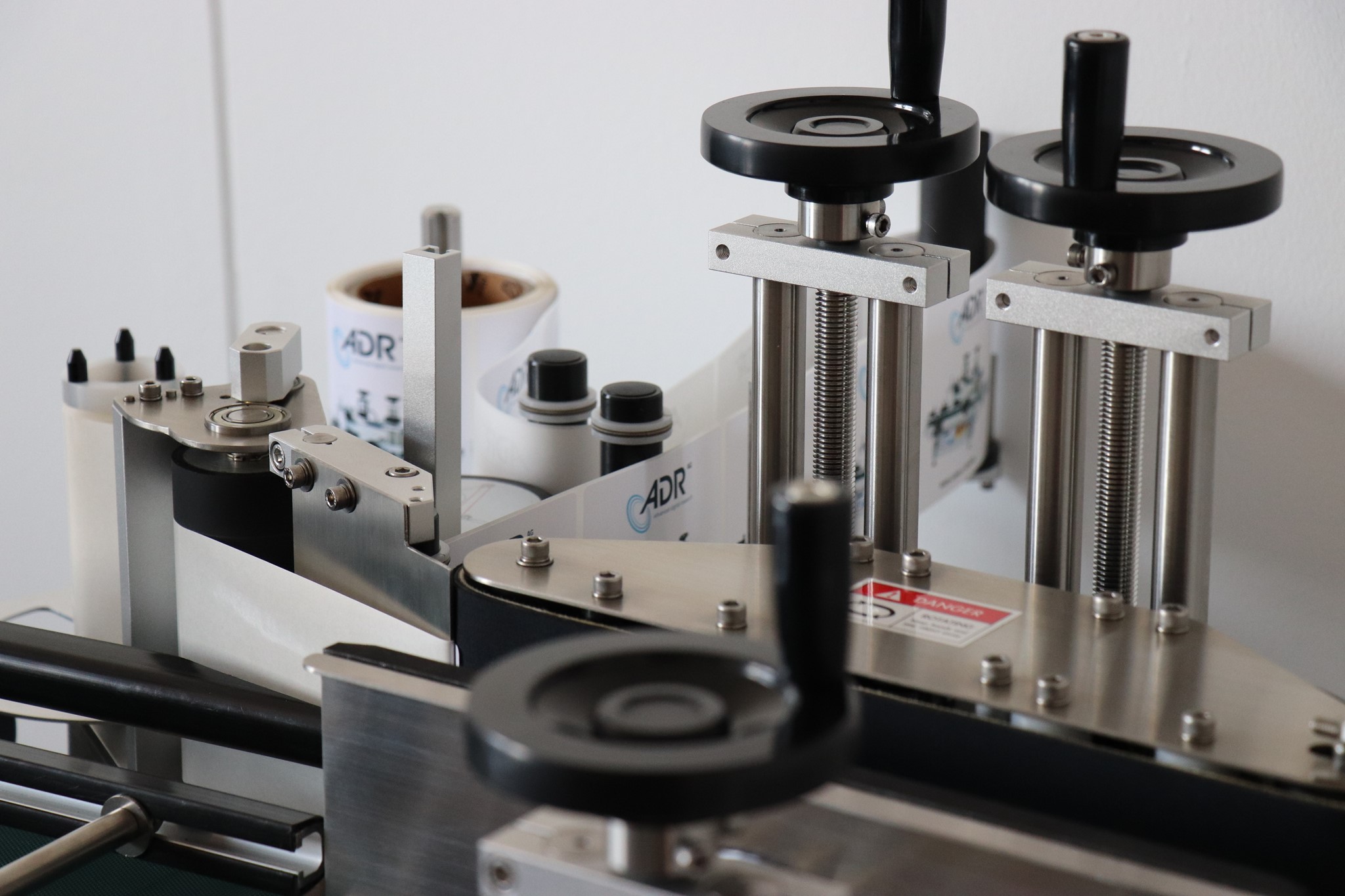

We installed different handwheels for the easy setup of the machine. You can easily change the formats for your products very fast.
Operation & Functions
- Easy Operation
The PLC based control panel with touch screen allows easy machine handling.
- Five Lots Memory Module
The memory module records the best labelling setting methods to boost the productivity by speeding up the changeover process.
- Missing Label Set
Prevents the product of being mislabeled to ensure accuracy during the production.
- Four Speed Selection

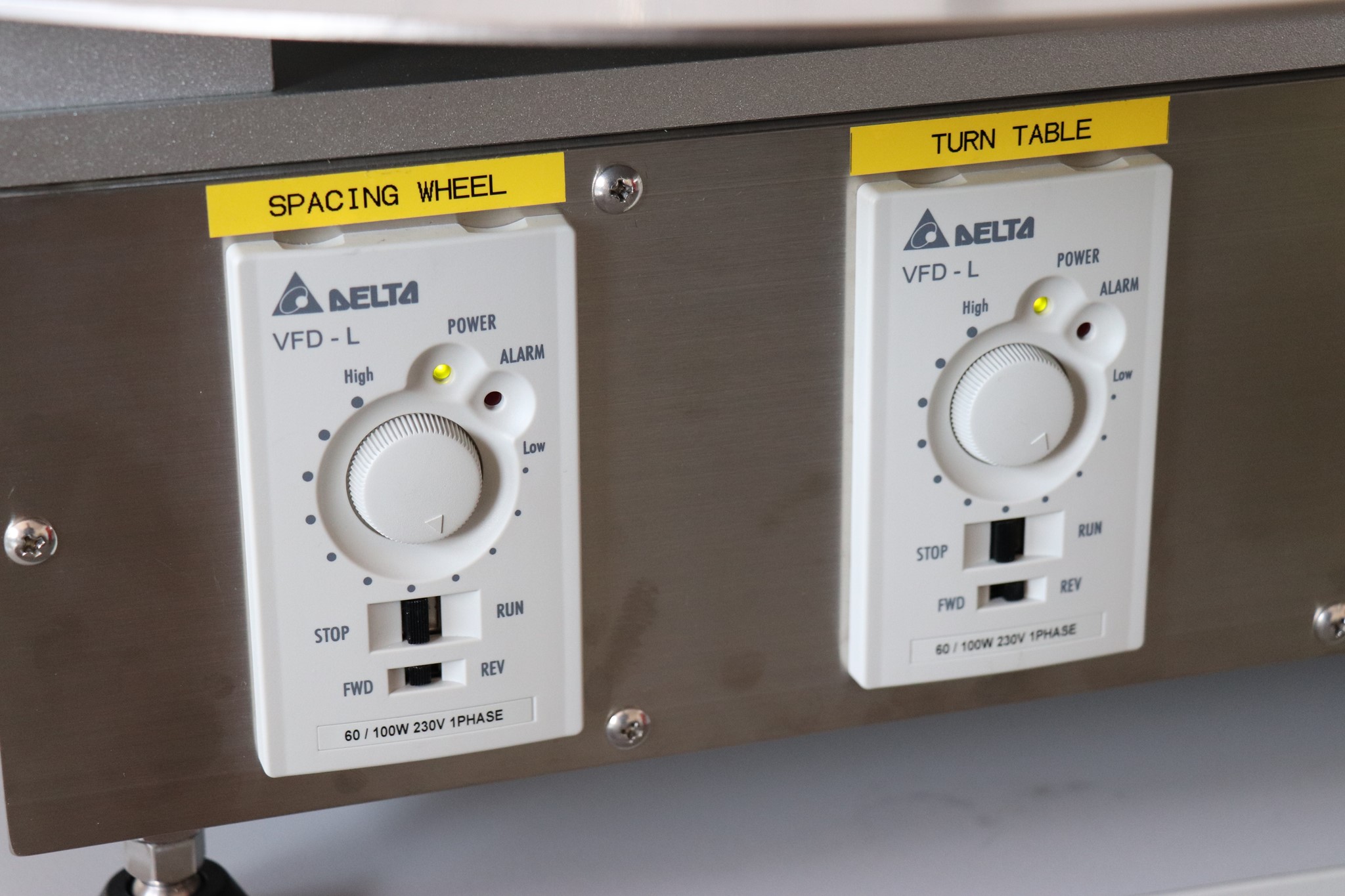

The conveyor belt and the dispensing process are synchronized to get the most accurate labeling effect.
- Preset Function
The built-in counter tracks the number of labelled products. So by using the batch mode you can stop the bottle labeler automatically once it reaches the target.
|Supply Voltage||220/110 VAC 50/60Hz 1Phase|
|Dispensing Speed||16m/min max.|
|Label Size||120mm x 300mm max.|
|Dimension||1100mm (L) x 870mm(W) x 600mm(H)|
---Specifications are subject to change without prior notice----
